45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port

Brand Name : GFUVE

Model Number : GF311

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000Units/Month

Delivery Time : 7 days

Packaging Details : Wooden Box

Accuracy class : 0.5%

Power supply : AC 85-265V 50/60Hz or Li-battery 5000mAh

Communication Port : RS232

Voltage measurement　 : 0-480V

Current measurement　 : 1mA-10A or 50mA-200A or 50mA-500A

Phase measurement　 : 0°-359.9°

Frequency measurement　 : 45-65Hz

Power factor measurement　 : -1 to 0 to +1

Dimensions (W×D×H) (mm) : 245×162×60

Working temperature : -10°C to 55°C

Contact Now

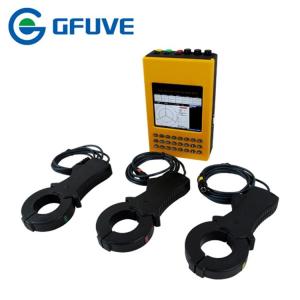

GFUVE GF311 Class 0.5 Basic Three Phase Power Quality Analyzer

FEATURES

  • Simultaneously measuring three-phase voltages, current, power, frequency, power factor, phase, etc.
  • Display vector map for the use of user directly.
  • Horizontal liquid crystal big screen TFT displays all electric parameters;
  • The smallest current it can measure is 1 mA, 2 mA above can display vector diagram;
  • Small volume, light weight and the operation is simple, convenient;
  • DSP digital signal processing chip, wide measuring range, high accuracy, good stability;
  • It can store data; data can be using computer software to upload for management;
  • Range switches automatically, software for be calibrated.

PARAMETERS

Electrical parameters　
Accuracy class 0.5%
Power supply AC 85-265V 50/60Hz or Li-battery 5000mAh
Communication Port RS232
Warming-up time < 5min
Power consumption ≤5VA
Voltage measurement　
U1, U2, U3 Range 0-480V
Resolution 0.001V
Accuracy 0.2%
Current measurement　
I1, I2, I3 Range 1mA-10A or 50mA-200A or 50mA-500A
Resolution 0.5mA
Accuracy 0.5%
Active power measurement　
Active accuracy 0.5%
Reactive power measurement　
Accuracy 1%
Phase measurement　
Range 0°-359.9°
Resolution 0.001°
Accuracy 0.1°
Frequency measurement　
Range 45-65Hz
Resolution 0. 001Hz
Accuracy 0.01Hz
Power factor measurement　
Range -1 to 0 to +1
Resolution 0.0001
Accuracy 0.01
Mechanical parameters　
Dimensions (W×D×H) (mm) 245×162×60
Weight (kg) 1 (mains)
6.5 (appendix and box)
Environmental conditions　
Working temperature -10°C to 55°C
Working humidity 15%-85%RHD
Storage temperature -25°C to 70°C
Storage humidity 5%-95%RHD
