Thermal Printer Electrical Test Equipment Circuit Breaker Tester / Analyzer

Name: Thermal Printer Electrical Test Equipment Circuit Breaker Tester Analyzer
Brand: GFUVE
Price: 1 USD

Quality Thermal Printer Electrical Test Equipment Circuit Breaker Tester / Analyzer wholesale

Brand Name : GFUVE

Model Number : T-209

Certification : ISO9001, CE, UL

Place of Origin : BEIJING, CHINA

MOQ : 1SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS/MONTH

Delivery Time : 2-3WEEKS

Packaging Details : STANDAR EXPORT WOODEN BOX

Name : Circuit Breaker Tester

Keywords : Circuit Breaker Analyzer

Weight : 6kg

LCD : 5.7 inch

Printer : Thermal Printer

Communication : RS232

Function : Test ABB, Siemens, schneider Switch

Power supply : 220V AC

Contact Now

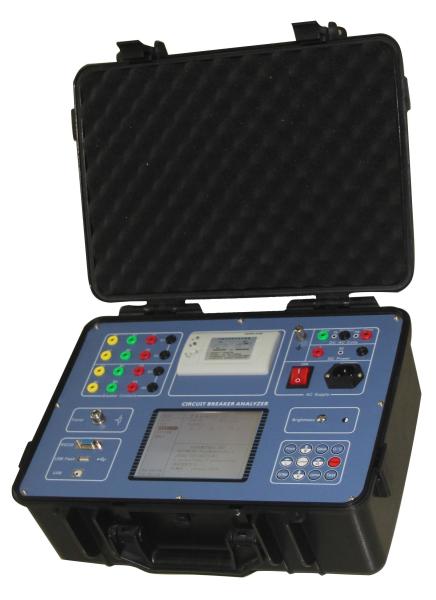

T-209 Circuit Breaker Tester With Thermal Printer

T-209 Circuit Breaker Tester can test the vacuum circuit breaker ,sf6, oil circuit breaker, gis and etc. the test parameters include, close or open time ,delta time ,bounce time ,bounce cycles, multi-operation, stroke , gap ,over-travel ,overshoot ,rebound and the speed, with the ability of test results and graph display.

The CB Analyzer tm system, is a new circuit breaker testing method that utilizes a Windows software program on a laptop or tablet pc to determine the condition of all types of circuit breakers.. The system combines vibration analysis, internet data transfer and sophisticated, condition-based analysis together with an online equipment database to easily and quickly test your circuit breakers .
Circuit breaker testing typically focuses on performing motion and time measurements on the units. However, our testing solutions have revolutionized circuit breaker testing. The testing solutions we offer include systems that can supply power during the testing process and are capable of measuring the micro-ohm resistance across the closed contacts.

Thermal Printer Electrical Test Equipment Circuit Breaker Tester / Analyzer

Function & Features

Immunity : withstand the 550KV electrostatic environment .
Transducer : with one analog transducer test ability .
Standard : with the standard of DL/T846.3—2004 (P.R.C.)
Power : with internal dc power ,the voltage ranges from 15v to 250v.
Trigger : with four triggers to start the recording ,channels state, voltage, current and transducer.
HMI : via keypad and a large transflective LCD display (320 x 240 pixels).
Speed :supply series of speed definition with editable and un-editable selection.
Recording: with twelve channels ,coil current and transducer .
Print :with internal installed 58mm wide thermal printer.
Communication:with RS232 and USB communication interface.
Memory: with a SD card of 2GB,the maximum storage ability is 100 test results.
USB FLASH: USB and RS232 interface for data communication with the PC.
Help : the instrument has internal help topic .

Technical Data

Product Model	T-209
Rated working condition	Operating temperature: - 10℃ to 50℃; storage: - 20℃ to + 70℃. Relative humidity : 5 - 95%, without condensing.
Input power	AC 220V/240V±10% AC, 50Hz/60Hz + 10%
Immunity	withstand the 550KV electrostatic environment
Test channels	12 channels with 25V,the current is 50mA
Transducer	one analog transducer
TIME	Recording time length : 0～9.9s Time accuracy : ±0.l%reading ± 2 LSB Resolution : 0.1ms
Motion	Range : 0～1000mm Accuracy : ±1% reading ±1LSB Resolution : 0.1mm
Velocity	Ranges : 0～20.00m/s Accuracy :±1%reading ±1LSB Resolution : 0.01m/s
DC POWER	Ranges : 15～260V Max current : 20A Accuracy : ±1%reading ±1LSB Load change :≤1%
TRIGGER	Voltage : 15～260V Current : 0.1-20A Tranducer : the transducer states changes Channels : channels states changed
Memory	SD card of 2GB,the maximum storage ability is 100 test results.
LCD	5.7″black and white LCD display (320 x 240 pixels)
Communication	RS232 and USB communication interface
Printer	internal installed 58mm wide thermal printer.
Standard	DL/T846.3—2004 (P.R.C.)
DIMENSIONS	380mm×262mm×120mm
WEIGHT	6kg

Product Tags:

electronic test instruments

electronic measurement equipment

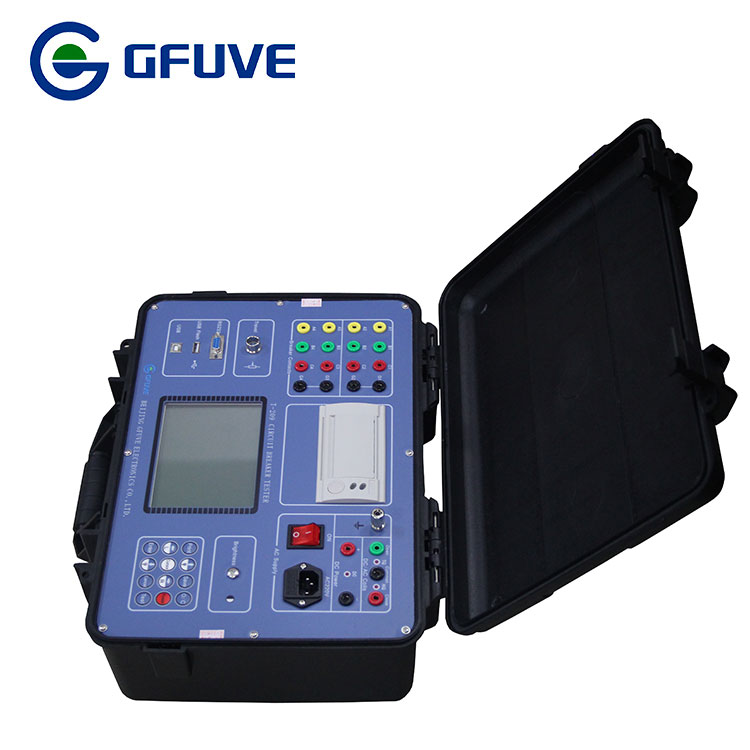

Thermal Printer Electrical Test Equipment Circuit Breaker Tester / Analyzer Images
